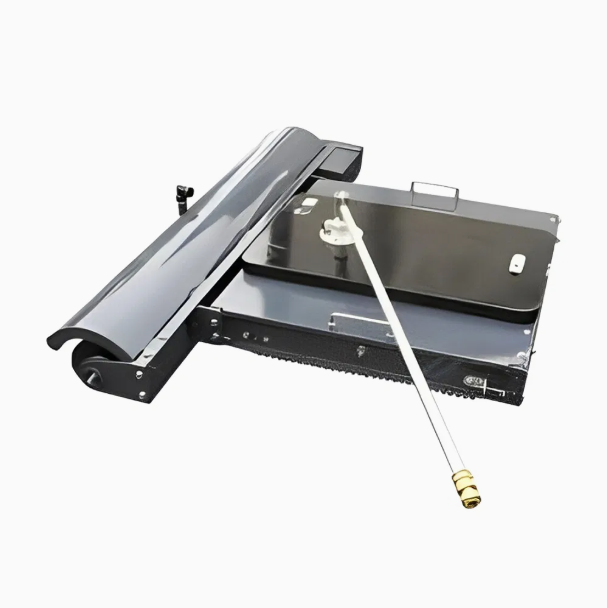

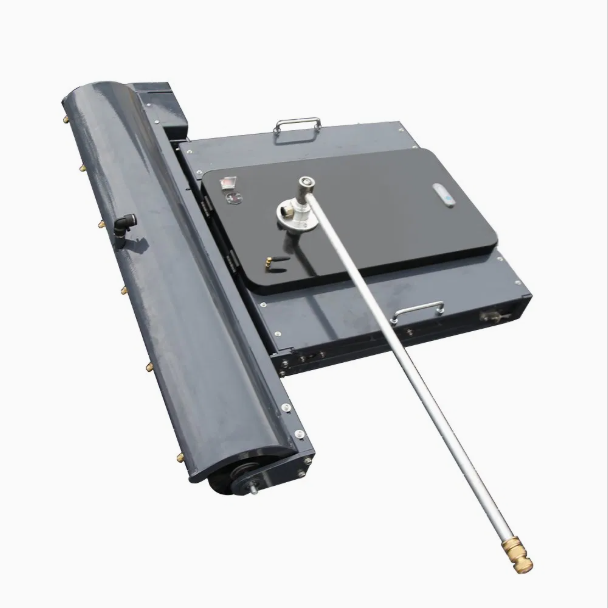

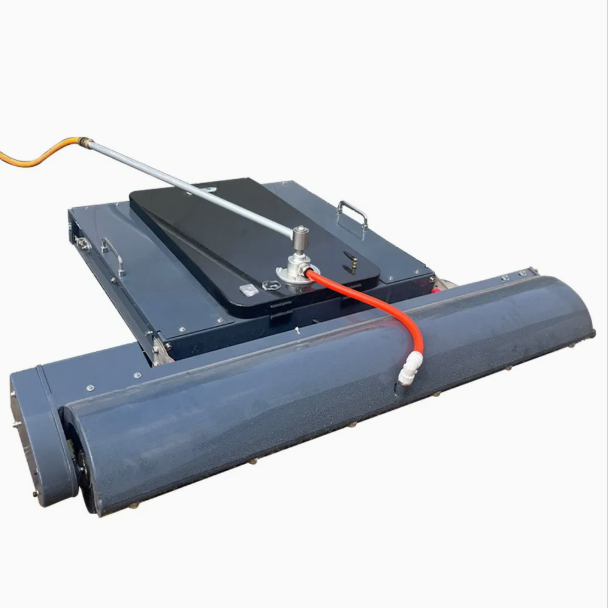

Single-Head Solar Panel Cleaning Machine

Certifications: CE, CB, RoHS, IP65/IP67 Waterproof Rating

Cleaning Method: Wet/Dry Dual-Use (Water-fed spray brushing available)

Brush Type: Single-head rotary disc brush

Power Supply: Lithium battery / Mains power / Dual power (optional)

Motor Type: Brushless motor (brushed motor optional)

Telescopic Pole Length: 3.5m / 5.5m / 7.5m (customizable up to 11.5m)

Product Description

The Single-Head Solar Panel Cleaning Machine is a portable handheld cleaning device designed specifically for photovoltaic (PV) power plant O&M. Featuring a single-head rotary disc brush and a high-strength aluminum alloy telescopic pole, a single operator can complete spray-brushing of ground-mounted and rooftop PV modules. With a total weight of approximately 5kg, it is lightweight and flexible, fully replacing traditional manual mop cleaning methods.

Equipped with a brushless motor, the brush head achieves a rotation speed of 350~380 RPM, improving cleaning efficiency by over 90% compared to traditional methods and significantly increasing PV panel power generation by 7%~30%.The brush head angle self-adapts to keep the brush fully in contact with the panel surface, ensuring even cleaning pressure and preventing damage to modules.The machine features a waterproof design with an integrated spray system that can connect to a water source for simultaneous spraying and brushing, effectively removing dust, bird droppings, salt-alkali stains, and leaf debris.

The device supports three power supply options: lithium battery version (24V/26Ah, approximately 68 hours runtime), mains version (220V to 24V DC), and dual-power version, allowing users to choose flexibly based on working scenarios.The telescopic pole is made of 34 sections of aluminum alloy, 1mm wall thickness, maximum tube diameter 40mm, collapsing to a minimum of 158cm for easy transport and storage.

Application Scenarios

Small-Scale PV Power Stations — Daily cleaning and maintenance of small-area, short-distance PV modules; lightweight and flexible, operable by a single person

Distributed Rooftop PV — Suitable for cleaning residential and commercial rooftop PV arrays, with telescopic poles covering low-altitude rooftop areas

Agrivoltaic / Aquavoltaic Power Stations — Suitable for cleaning PV modules on elevated piles, ponds, and other special terrains; connects to water source for spray-brushing

Mountainous PV Power Stations — Adapts to local cleaning and edge-area maintenance of PV arrays in complex terrains

Localized Deep Cleaning of PV Modules — Targeted removal of heavy soiling such as bird droppings and oil stains; single-head design is more flexible and lighter than dual-head models

PV O&M Service Companies — As a low-cost, highly portable O&M tool for rapid response to multi-point, small-scale cleaning tasks

Product Parameters
