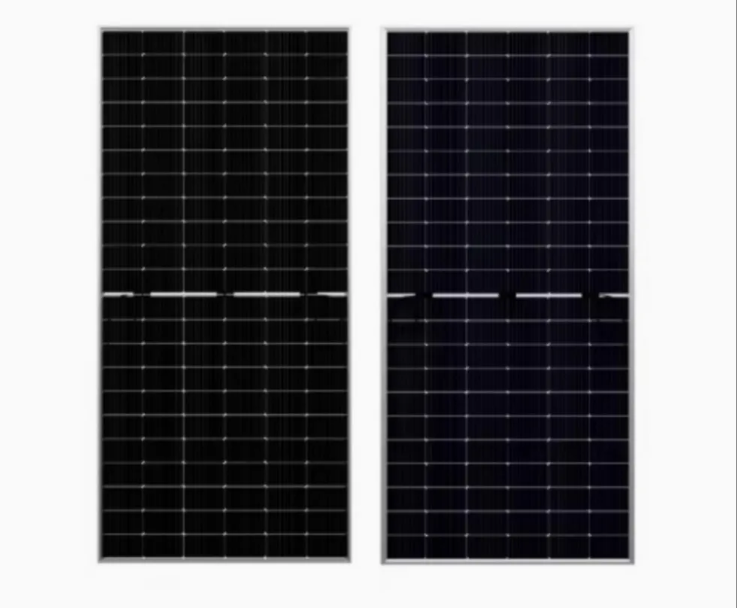

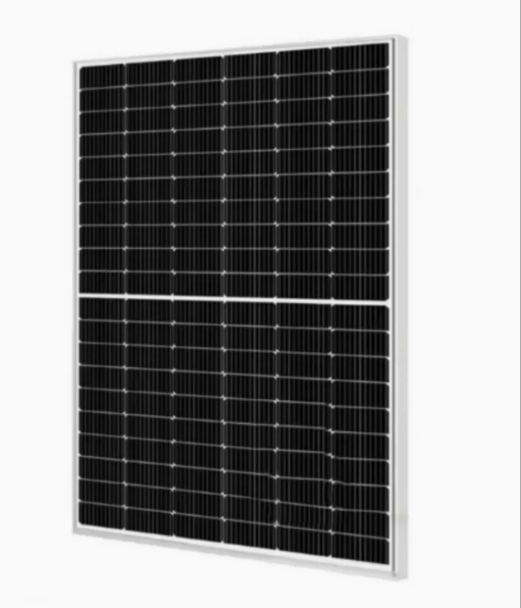

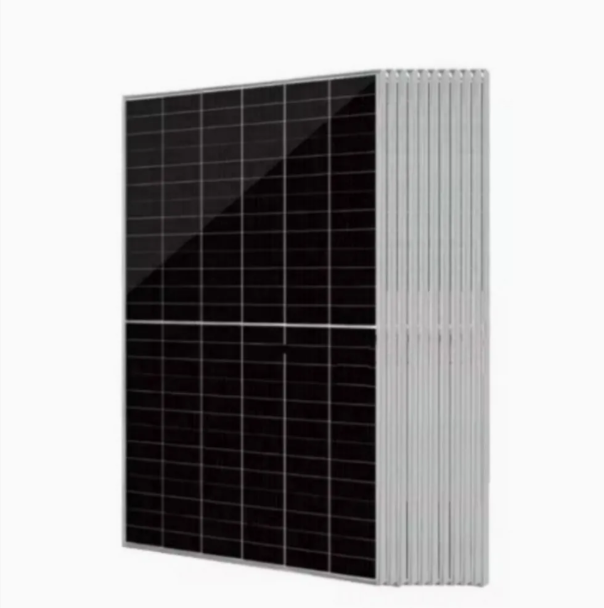

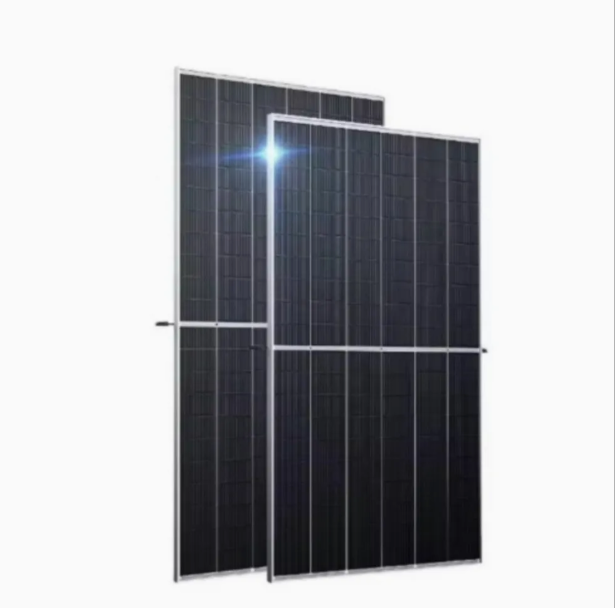

PERC Solar Photovoltaic Panel

Certifications: IEC 61215, IEC 61730, CE, TUV, ISO 9001, ISO 14001

Cell Type: P-type Monocrystalline PERC (Passivated Emitter and Rear Contact)

Module Power Range: 350W ~ 670W (varies by model and format)

Module Conversion Efficiency: 19.9% ~ 21.57%

Maximum System Voltage: DC 1500V

Power Warranty: 25-year (glass-backsheet) / 30-year (dual-glass) linear power warranty

Product Warranty: 12 years

Product Description

PERC (Passivated Emitter and Rear Contact) solar photovoltaic panels are built on conventional monocrystalline silicon cells with an added passivation dielectric layer on the rear side, forming a locally opened rear contact structure that effectively reduces rear-side carrier recombination and improves photoelectric conversion efficiency. PERC technology is the mature mainstream solution for P-type silicon cells, achieving mass production cell efficiencies of 22%~24% and module efficiencies of 19.9%~21.57%.

PERC modules adopt Multi-Busbar (MBB) and half-cut cell technology, effectively reducing resistive losses and improving micro-crack resistance. The cells use gallium-doped wafers, significantly reducing Light-Induced Degradation (LID), with first-year degradation controlled within 2% and subsequent annual linear degradation of approximately 0.45%. Bifacial dual-glass PERC modules achieve bifaciality of 75%~80%, enabling an additional 10%~20% rear-side power gain on high-albedo surfaces.

The front side uses 3.2mm ultra-white anti-reflective coated tempered glass, with an anodized aluminum alloy frame and IP68-rated junction box. The modules withstand 5,400Pa snow load and 2,400Pa wind load, operating within -40℃ to 85℃, with resistance to salt mist, ammonia corrosion, PID, and sand/dust. PERC technology offers mature supply chains, low manufacturing costs, and high cost-performance, making it a reliable choice for distributed PV and large-scale ground-mounted plants.

Technical Features

Passivated Contact Structure — Rear passivation layer effectively reduces carrier recombination, improving cell open-circuit voltage and conversion efficiency

Low LID — Gallium-doped wafers significantly reduce Light-Induced Degradation compared to conventional boron-doped P-type cells

MBB + Half-Cut — Multi-busbar and half-cut technology reduce resistive losses and improve micro-crack resistance

Bifacial Power Generation — Bifacial dual-glass PERC modules achieve 75%~80% bifaciality with significant rear-side gain

Mature & Reliable — Complete supply chain, low manufacturing cost, high cost-performance

Strong Environmental Adaptability — Certified for salt mist, ammonia, PID, and sand/dust resistance

Product Parameters

The following are general specifications for mainstream PERC PV modules, classified by application scenario:

Application Scenarios

Residential Rooftop PV — 108-cell format, 400W~465W, 21.0kg~27.0kg, all-black or silver frame design combining aesthetics and efficiency, suitable for residential and small commercial rooftops

Commercial & Industrial Distributed PV — 144-cell format, 440W~560W, bifacial dual-glass construction, high bifaciality utilizing rooftop reflected light to increase yield, suitable for factories, industrial parks, and shopping malls

Utility-Scale Ground-Mounted Plants — 132-cell format, 645W~670W, 210mm large-format cells, low-voltage design increases string power and reduces BOS costs and LCOE, suitable for large ground-mounted PV plants

Coastal & High-Humidity Regions — Certified to IEC 61701 salt mist and IEC 62716 ammonia corrosion standards, suitable for coastal and fishery PV projects

High-Albedo Ground-Mounted Plants — 75%~80% bifaciality, additional 10%~20% rear-side gain on sand, snow, and concrete surfaces

Agrivoltaic / Aquavoltaic Projects — Bifacial dual-glass modules offer good light transmittance and weather resistance, suitable for agricultural greenhouses and water-surface PV

Distributed & Ground-Mounted Hybrid Projects — Mature supply chain and lower cost, suitable for projects sensitive to ROI and distributed projects requiring rapid delivery

System Components

PERC PV modules consist of P-type monocrystalline PERC cells, 3.2mm ultra-white anti-reflective coated tempered glass, EVA/POE film, TPT backsheet or rear glass, anodized aluminum alloy frame, IP68 junction box, and MC4-compatible connectors. Cells are soldered in series/parallel using Multi-Busbar (MBB) and half-cut technology, laminated and encapsulated, then assembled with the frame. Bypass diodes are built into the junction box to prevent hot-spot effects. The module outputs DC power through MC4 connectors, directly connectable to PV inverters or combiner boxes, suitable for grid-connected, off-grid, and hybrid power generation systems.
