Automatic Solar Panel Dual-Cleaning Machine

Certifications: CE, RoHS, IP65/IP68 Waterproof Rating

Cleaning Method: Dry brushing + Wet washing dual-cleaning mode (Dual brushes synchronous / Dry-wet dual-use)

Cleaning Width: 0.7m ~ 1.3m (varies by model)

Cleaning Efficiency: 800 ~ 6000㎡/h (varies by model and configuration)

Power Supply: Lithium battery / Mains power / Dual power (optional)

Control Mode: Remote control / Fully automatic path planning

Product Description

The Automatic Solar Panel Dual-Cleaning Machine is an intelligent PV cleaning device that integrates dry brushing for dust removal and wet washing for stain removal. The “dual cleaning” is achieved through two technical approaches: first, dual brush heads/dual roller brushes rotating synchronously in opposite directions, completing two cleaning passes in one operation; second, the dry-wet dual-use mode, which supports waterless dry brushing as well as wet washing with a high-pressure spray system, meeting the needs of different working conditions.

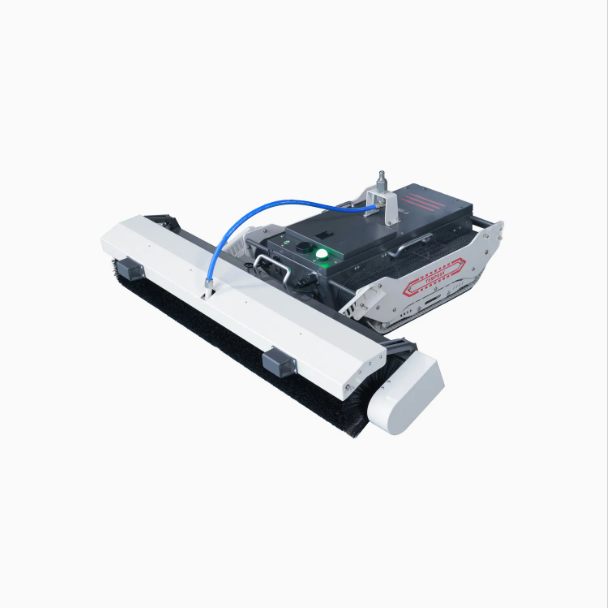

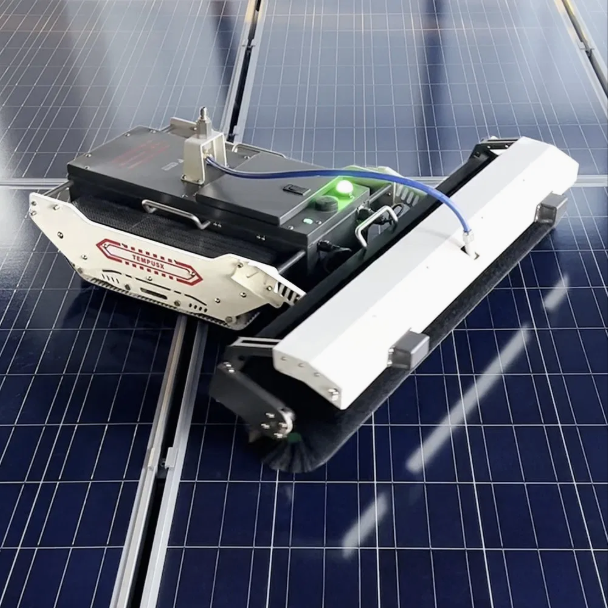

The equipment is mainly available in two types: handheld dual-head and tracked self-propelled. The handheld dual-head type features dual disc brushes rotating synchronously in opposite directions at 350~370 RPM, achieving a cleaning efficiency of up to 4,000~6,000㎡/h — nearly double that of single-head models. It is equipped with a 3.512m carbon fiber telescopic pole, allowing ground-level operation without climbing, suitable for residential rooftops, commercial color-steel tile roofs, and small-to-medium ground-mounted plants.The tracked self-propelled type adopts a dual roller brush composite cleaning structure with an ultra-wide 1.11.3m roller brush, achieving a cleaning efficiency of up to 5,000㎡/h and completing 1~2MW of PV cleaning per day. It is equipped with widened anti-slip tracks and active anti-fall sensors, suitable for large-scale ground-mounted plants and large distributed rooftops.

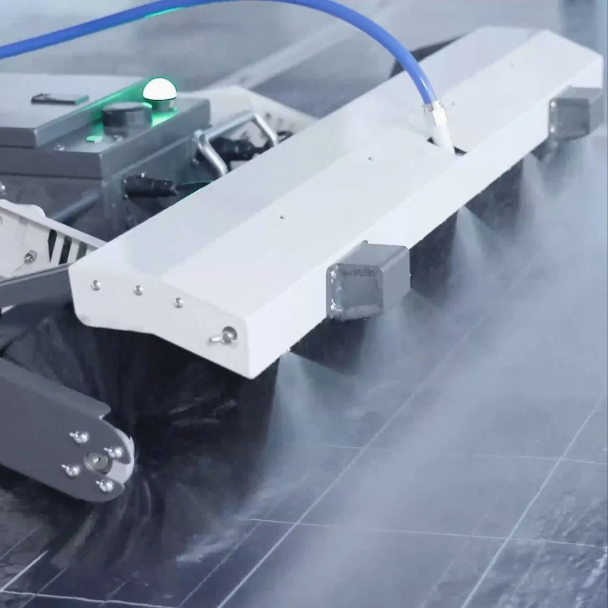

The equipment is equipped with high-power brushless motors coupled with precision planetary reducers, ensuring reliable operation during rain or water washing. The brushes use PBT flexible bristles or wear-resistant nylon material, self-adapting to panel angles and conforming to PV glass without scratching the anti-reflection coating.The dual-cleaning machine supports both dry brushing and low-pressure water washing modes, effectively removing dust, bird droppings, industrial mud stains, and salt-alkali deposits, restoring light transmittance and significantly improving PV module power generation efficiency.

Application Scenarios

Residential & Distributed Rooftop PV — The handheld dual-head type with 3.5~5.5m telescopic pole enables ground-level cleaning of low-rise rooftop PV without climbing, avoiding high-altitude work risks

Commercial & Industrial Rooftop PV — 7.5~8m telescopic pole adapts to conventional C&I color-steel tile roofs; the tracked self-propelled type suits large-scale continuous rooftop O&M

Large-Scale Ground-Mounted PV Stations — The tracked dual-roller robot cleans 1~2MW per day, adapting to routine O&M needs of large ground-mounted plants

Agrivoltaic / Aquavoltaic Power Stations — 10~12m long-pole models suit high-drop and water-surface PV scenarios; the tracked robot adapts to various complex terrains

Mountainous PV Stations — Handheld type is lightweight and flexible for complex terrains and edge areas; tracked type with anti-fall sensors suits large mountainous arrays

PV O&M Service Companies — Handheld type suits rapid response for multi-point, small-scale cleaning; tracked type suits bulk procurement and large-scale O&M

Product Parameters

The following lists typical specifications for handheld dual-head and tracked self-propelled types:
