Product Description

6-10kW Hybrid Solar Inverter

Certifications: IEC 62109, IEC 61727, IEC 61000, VDE, CE, EN 50438, AS/NZS 4777, UL

Rated Output Power: 6kW / 7kW / 8kW / 10kW

Max PV Input Power: 9.6kW ~ 20kW (1.5~2× rated power oversizing)

Number of MPPT: 2

Battery Type: Lithium-ion / Lead-acid / Gel battery

Battery Voltage Range: 40V ~ 60V (low voltage) / 80V ~ 700V (high voltage)

Protection Level: IP65 / IP66

Grid/Off-Grid Switching Time: ≤10ms

Product Description

The 6-10kW Hybrid Solar Inverter is an intelligent energy storage inverter designed for small-to-medium residential, villa, and small commercial applications. It integrates PV grid-connected generation, battery energy storage management, and off-grid backup power into a single unit, serving as the core control unit of home and small commercial energy management systems. Compared with the 3-6kW power range, this series offers significant improvements in output power, battery charge/discharge capability, and parallel expansion scale, meeting larger load demands and higher PV self-consumption requirements.

The product features a dual MPPT design supporting 18A+18A to 42A+42A PV input current (varies by model), compatible with high-power PV modules. Maximum PV input power can reach 2× the rated power, significantly improving PV utilization. The inverter achieves a maximum efficiency of 97.6%~98.2%, MPPT tracking efficiency exceeding 99%, and Euro efficiency of 96.5%~97.4%, with no-load loss below 10W and standby loss below 3W. Equipped with an intelligent Time-of-Use (TOU) charging/discharging mode, it automatically optimizes charge/discharge strategies based on tariff periods, reducing user electricity costs.

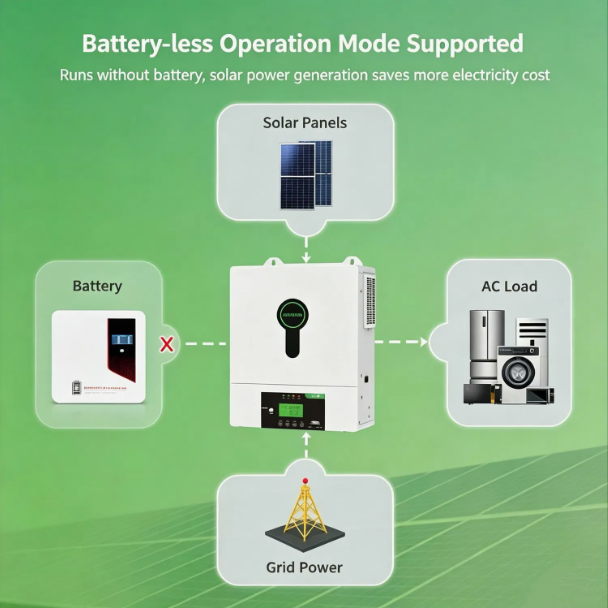

The system supports grid-connected, off-grid, and hybrid operating modes, with off-grid switching time ≤10ms. During grid outages, it automatically switches to battery power, ensuring uninterrupted operation of critical loads such as refrigerators, lighting, and air conditioning. Battery compatibility is strong, supporting lithium-ion, lead-acid, and gel batteries, with lithium-ion charging strategies adaptive to BMS. The system supports up to 6~16 units in parallel (varies by model), flexibly expandable to 90kW~160kW, suitable for residential, small commercial, communication base stations, and off-grid areas.

Application Scenarios

Residential & Villa PV-Storage Systems — Works with rooftop PV modules and battery packs to achieve PV self-consumption, surplus storage, and peak-valley arbitrage. A single 10kW unit meets round-the-clock power needs of villa-level households, with parallel expansion up to 90kW+

Home Emergency Backup Power — Automatically switches to off-grid supply within ≤10ms during grid outages, providing uninterrupted power for critical loads such as refrigerators, lighting, air conditioning, routers, and security systems

Small Commercial & Office Spaces — Suitable for small shops, offices, clinics, and B&Bs, reducing peak demand charges and improving power supply reliability

Communication Base Stations & Remote Area Power Supply — Supports off-grid and weak-grid operation with diesel generator interface, suitable for stable power supply in areas with unstable or no grid coverage

PV-Storage-Charging Integrated Systems — Collaborates with EV chargers to intelligently match PV generation, storage regulation, and charging loads, mitigating charging load impact on the grid

Virtual Power Plant (VPP) & Demand Response — Supports remote firmware upgrades and grid dispatch, connectable to VPP platforms for demand response and power market trading

Product Parameters

The following are general specifications for mainstream 6-10kW hybrid inverters, classified by single-phase/three-phase and low-voltage/high-voltage battery platform:

Category	Item	Single-Phase LV (Typical)	Three-Phase LV (Typical)	Three-Phase HV (Typical)
PV Input Parameters	Max PV Input Power	12,000W ~ 20,000W	12,000W ~ 24,000W	12,000W ~ 24,000W
	Max PV Input Voltage	500V	800V	1000V
	MPPT Voltage Range	150V ~ 425V	200V ~ 650V	150V ~ 850V
	Start-up Voltage	125V	160V	130V
	Rated PV Input Voltage	370V	550V	600V
	Max Input Current per MPPT	18A ~ 42A	13A ~ 26A	20A ~ 30A
	Max Short-Circuit Current per MPPT	27A ~ 48A	17A ~ 34A	30A ~ 40A
	Number of MPPT	2	2	2
	Strings per MPPT	1+1 / 2+2	1+1 / 2+1	1+1
Battery Parameters	Battery Type	Li-ion / Lead-acid / Gel	Li-ion / Lead-acid / Gel	Li-ion
	Rated Battery Voltage	48V / 51.2V	48V / 51.2V	HV platform
	Battery Voltage Range	40V ~ 60V	40V ~ 60V	80V ~ 700V
	Max Charge Current	120A ~ 210A	150A ~ 240A	25A ~ 50A
	Max Discharge Current	120A ~ 210A	150A ~ 240A	25A ~ 50A
	Max Charge/Discharge Power	6,000W ~ 10,000W	6,000W ~ 10,000W	6,000W ~ 10,000W
	Li-ion Charging Strategy	Self-adaptive to BMS	Self-adaptive to BMS	Self-adaptive to BMS
AC Output (Grid-Connected)	Rated Output Power	6,000W / 8,000W / 10,000W	6,000W / 8,000W / 10,000W	6,000W / 8,000W / 10,000W
	Max Output Apparent Power	6,600VA ~ 11,000VA	6,600VA ~ 11,000VA	6,600VA ~ 11,000VA
	Rated Output Voltage	220V / 230V	220V/380V, 230V/400V	220V/380V, 230V/400V
	Rated Output Frequency	50Hz / 60Hz	50Hz / 60Hz	50Hz / 60Hz
	Rated Output Current	27.3A ~ 45.5A	9.1A ~ 15.2A	9.1A ~ 15.2A
	Max Output Current	30A ~ 50A	10A ~ 16.7A	10A ~ 16.7A
	Power Factor Adjustable Range	0.8 leading ~ 0.8 lagging	0.8 leading ~ 0.8 lagging	0.8 leading ~ 0.8 lagging
	Total Harmonic Current Distortion	＜3%	＜3%	＜3%
AC Output (Off-Grid/Backup)	Rated Backup Power	6,000W ~ 10,000W	6,000W ~ 10,000W	6,000W ~ 10,000W
	Peak Output Power	1.5~2× rated power for 10s	1.5~2× rated power for 10s	1.5× rated power for 10s
	Grid/Off-Grid Switching Time	≤10ms	≤10ms	≤10ms
	Off-Grid Overload Capability	101%-110% for 30s; ＞110% for 10s	Same	Same
Efficiency Parameters	Max Efficiency	97.6%	97.6%	97.6% ~ 98.2%
	Euro Efficiency	96.5%	97.0%	97.0% ~ 97.4%
	MPPT Tracking Efficiency	＞99%	＞99%	＞99%
General Parameters	Protection Level	IP65	IP65	IP65
	Operating Temperature	-25℃ ~ +60℃ (derating ＞45℃)	-25℃ ~ +60℃	-25℃ ~ +60℃
	Noise	＜35dB (natural cooling)	＜35dB (natural cooling)	＜35dB (natural cooling)
	Cooling Method	Natural cooling	Natural cooling	Natural cooling
	Dimensions (W×H×D)	Approx. 335×560×253mm	Approx. 505×453×198mm	Approx. 505×453×198mm
	Weight	Approx. 23.5kg ~ 28kg	Approx. 28kg ~ 30kg	Approx. 28kg
	Max Operating Altitude	≤3,000m	≤3,000m	≤3,000m
Protection Functions	DC Protection	DC reverse polarity, DC switch, insulation impedance detection, AFCI (optional), Type II SPD (DC)	Same	Same
	AC Protection	AC overcurrent, AC overvoltage, AC short circuit, anti-islanding, residual current detection	Same	Same
	Other Protection	Over-temperature, DC component monitoring, ground fault protection	Same	Same

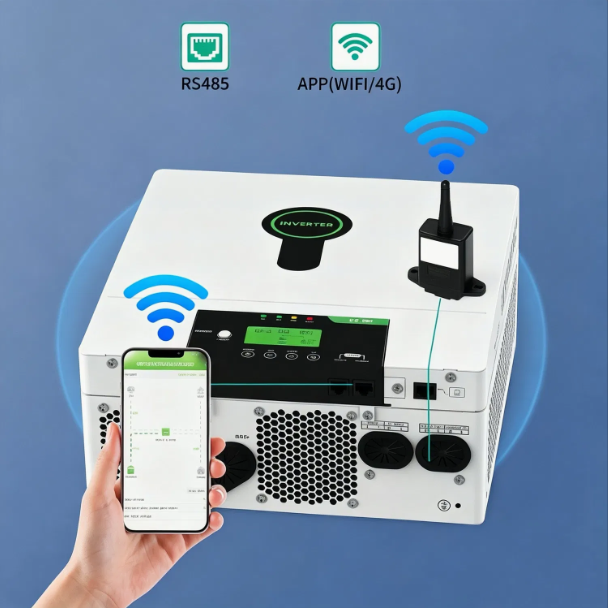

Communication	Communication Interfaces	RS485 / CAN / Wi-Fi / Bluetooth / 4G (optional)	RS485 / CAN / Wi-Fi / 4G (optional)	RS485 / CAN / Wi-Fi / 4G (optional)
	Communication Protocols	Modbus TCP/RTU, CAN 2.0	Modbus TCP/RTU, CAN 2.0	Modbus TCP/RTU, CAN 2.0
	Monitoring	APP / Cloud platform / Local touchscreen	APP / Cloud platform	APP / Cloud platform
	Parallel Units	Up to 6~16 units	Up to 10 units	Up to 10 units

System Components

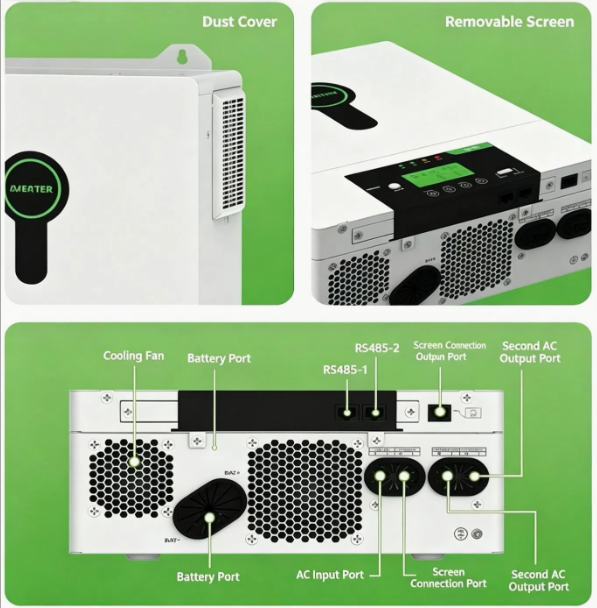

The system consists of a PV DC-DC conversion unit (with dual MPPT maximum power point tracking modules), battery charge/discharge management unit (supporting adaptive management of lithium-ion/lead-acid/gel batteries, with maximum charge/discharge current up to 240A), grid-connected inversion unit (DC-AC bidirectional conversion, three-phase or single-phase output), off-grid inversion unit (pure sine wave output, switching time ≤10ms), intelligent Energy Management System (EMS) control unit, protection and monitoring unit (including AFCI arc protection, anti-islanding protection, insulation impedance detection, and Type II SPD), human-machine interface module (color touch LCD and communication interfaces), and thermal management system (natural cooling). The system supports multi-directional energy flow and intelligent scheduling among PV, battery, grid, and loads, interconnecting with cloud monitoring platforms via RS485/CAN/Wi-Fi/4G interfaces for remote monitoring, strategy scheduling, and firmware upgrades. Some models support 100% three-phase unbalanced output, flexibly handling asymmetric load scenarios.

Factory Display

FAQ

Q : How much money can a C&I energy storage system save my business?
A : Savings depend on your electricity consumption, local peak/off-peak price differentials, and system capacity. For a 215kWh system with one charge-discharge cycle per day, assuming a price differential of $0.10/kWh, a single cycle can save approximately $21.50. Actual returns vary by local utility rates and load profiles. We can provide a customized ROI analysis for your business.
Q : How do I choose the right storage capacity for my business?
A : Capacity selection is based on two key factors: peak load power (determines PCS rating) and energy shifting demand (determines battery capacity). Typically, we analyze your past 12 months of utility bills to calculate maximum demand and off-peak charging needs. We recommend leaving about 20% capacity margin for future load growth.
Q : What is the typical payback period for a C&I ESS?
A : The payback period for C&I energy storage projects is typically 3–6 years, depending on local peak/off-peak price differentials, system costs, government incentives, and your company's self-consumption capability. With declining battery costs and ongoing power market reforms, payback periods continue to shorten.
Q : Liquid-cooled vs. air-cooled – which should I choose?
A : Here's a quick comparison:
Liquid-cooled series: Provides precise thermal control with temperature differences maintained within < 3°C, significantly extending battery cycle life and improving efficiency in high-temperature environments. Ideal for high-density, high-power projects.
Air-cooled series: Mature technology with lower upfront investment and simpler maintenance. Suitable for small to medium-sized projects or cost-sensitive applications.
